Stainless Steel Punched Grid Type Resistors

Stainless Steel Punched Grid Type Resistors

Product Code: 02

Availability: In Stock

Stainless Steel Punched Grid Type Resistors

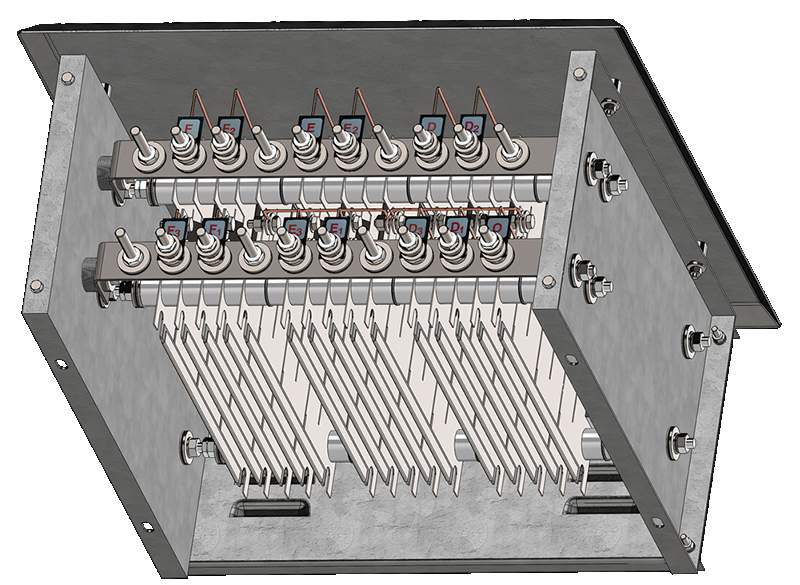

“Speedage” Punched grid resistors consists of grids punched from corrosion resisting Nickel Chromium alloy sheet steels. The inherent strength of the steel itself is very high and owing to the pressed and reinforced construction the rigidity of the grids are completely immune to shock and vibration.

These resistors are available in a wide range of current ratings form 15 Amps. to 234 Amps. continuous and the fixing dimensions and weight of various type of grids are identical, which means the different type of grids required for various steps of resistance would have identical size and mounting dimensions

To order a resistor assembly, simply obtain the motor information required for your particular requirements and contact the engineering department at the “Speedage Engineers” factory to design a resistor assembly for your application.

Data Requirements:
• Motion (Hoist or Travel)
• Secondary Voltage and Current (Rotor Voltage/RV and Rotor Current/RA)
• Duty: Indoor / Outdoor
• Horsepower
• Type of Control Scheme (Pendent Push Button / Master Controller / Drum Controller)
• Number of Speeds
