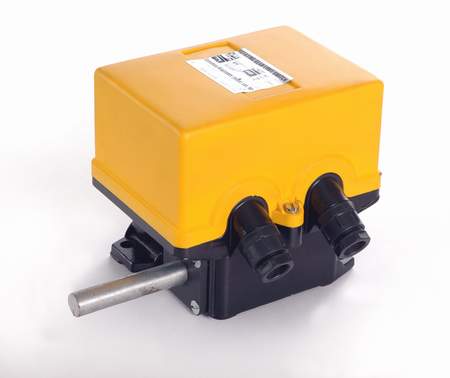

Rotating Gear Limit Switch

This range of Limit Switch is suitable for reversing drives, such as Hoists, Cranes, Winches, Rolling Mills etc

MECHANICAL FEATURES OF LIMIT SWITCH

Aluminium Die casted main body and thermoplasic cover

Protection - IP 65

Maximum number of operating contacts - 6

Cable entry - 2 Nos.

Operating Temperature -   -10⁰ C to + 70⁰ C

Cams & micrometic adjustments screws allows precise setting of cams as per requirement

Cams shaft and worm gear with ball bearing

Gear ratio -      1:50  ,  1:100

ELECTRICAL FEATURES OF CONTACT ELEMENTS

Snap action contacts  - 1NO + 1NC change over switches

Silver cadmium Contacts

Test Voltage - 2000 V AC

Operating Current - 10 A rated at 415 V AC

Mechanical life - 1 X 10⁶ operations
